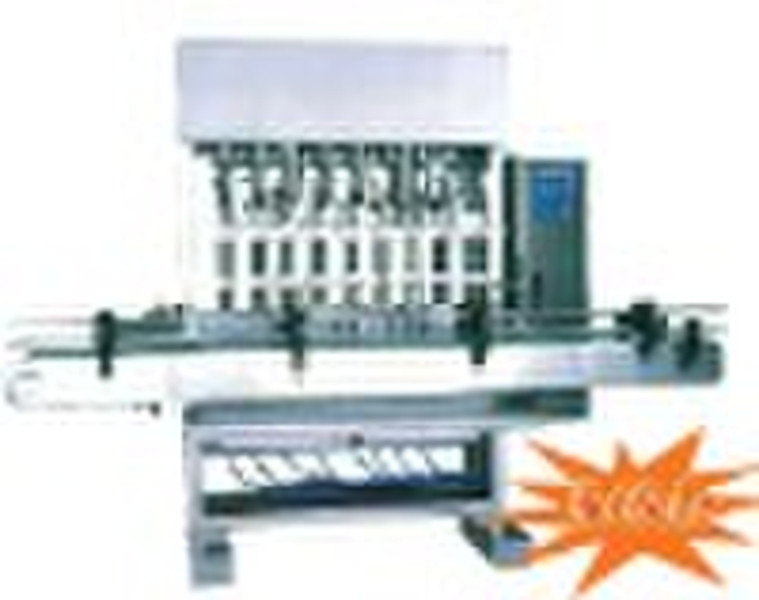

Automatic Liquid Filler YP-880 CE passed

Automatic liquid filler YP-440 CE passedThis liquid filler has 8 straight cylinders(max. up to 12 cylinders).Simple, fast and one step adjustment for accurate adjustment of desired volume, and pricion can up to ±0.5%.Filling pin is designedfor leak preventing.filler can Fast bottle size change without change parts.With multi-point photoelectric detection, this liquid filler stops at no-bottle feeding, exit bottle blockage, filling blockage and insufficient air pressure.Installed with hygienic safety cover, machine stops in case of cover opening.Freedom in motor speed adjustment by adopting stepless speed controller.Simple in disassembly and assembly of piston/cylinder setting, easy for cleaning, meeting GMP standard.this filler Stuitable for independent operation, also possible for connection with line operation.Specialties: Filling capacity: 200-500ml Speed(n/mm): 20-40 Power source(VAC): 220V / 380V Motor power: 1.0kw Air consumption(min): 4kg*30liter N.W: 750kg G.W: 850kg Carton size: 3200*1200*1900mm Update Date:2010-12-29 21:47:32
